ibox

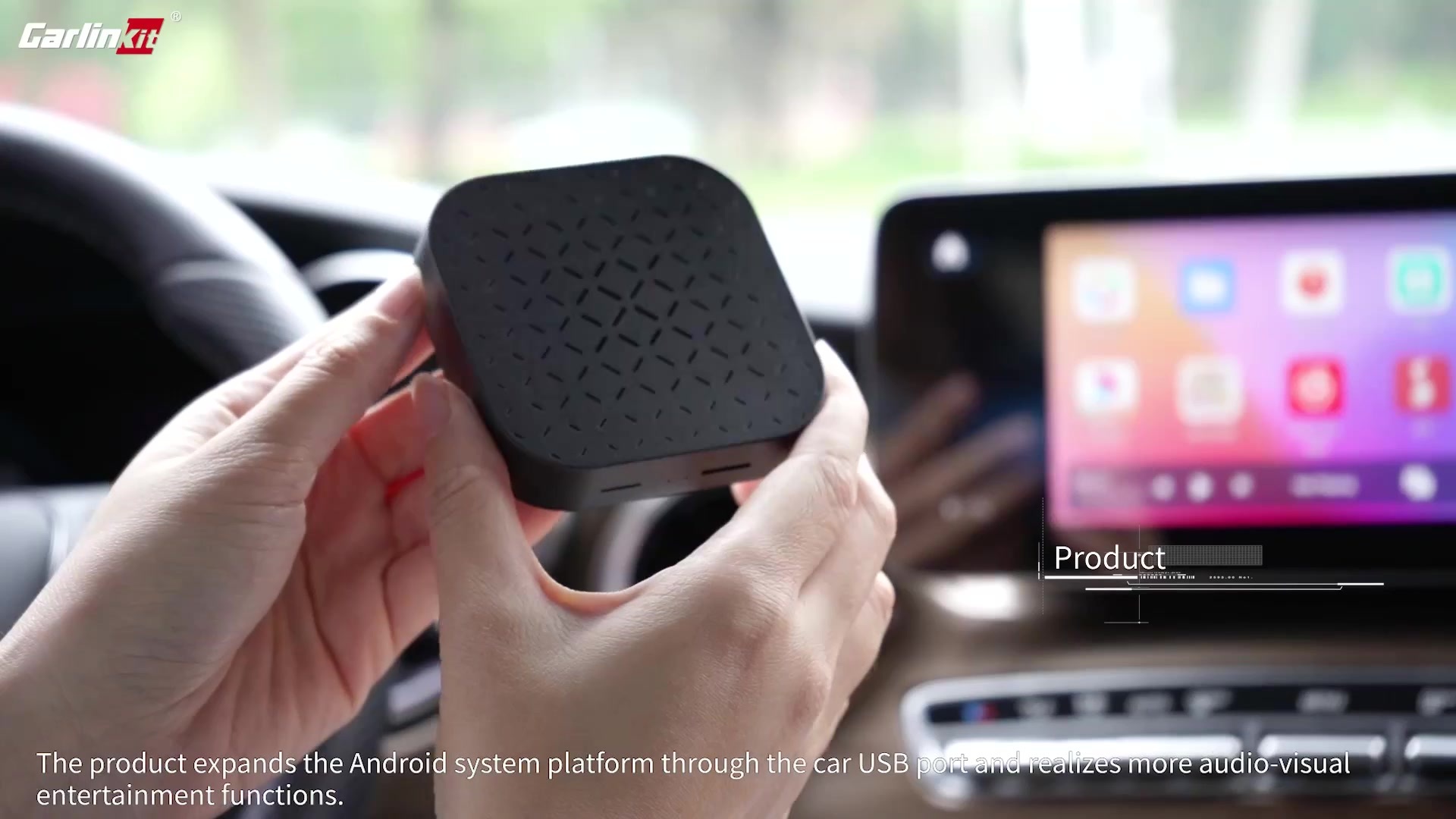

Central control becomes Android system in seconds
One screen, multiple displays, dual-screen interaction,Cell phone / car screen independent display,Two systems, a variety of ways to play, so that the car machine to say goodbye to monotony,Cell phone and central control interface do not interfere with each other, independent operation!
Quality Upgrade
4 core 2+16G Qualcomm QCM2290 processor.Using 11nm technology, more powerful performance, running fast without pressure
Non-destructive upgrade
Continued operation of the original car control,No need to disassemble the central control / car screen, car box plug and play,Can also be used with the original car knob / touch screen / steering wheel buttons
Mobile Cinema
Support a variety of video APP, a large number of film resources at your leisure to watch,Support downloading games to play online, so that your journey is no longer boring
More systems
Open a new intelligent experience,Built-in wireless CarPlay, wireless Android Auto,Enjoy more cell phone interconnection system
Tech Specs
Product
Product name

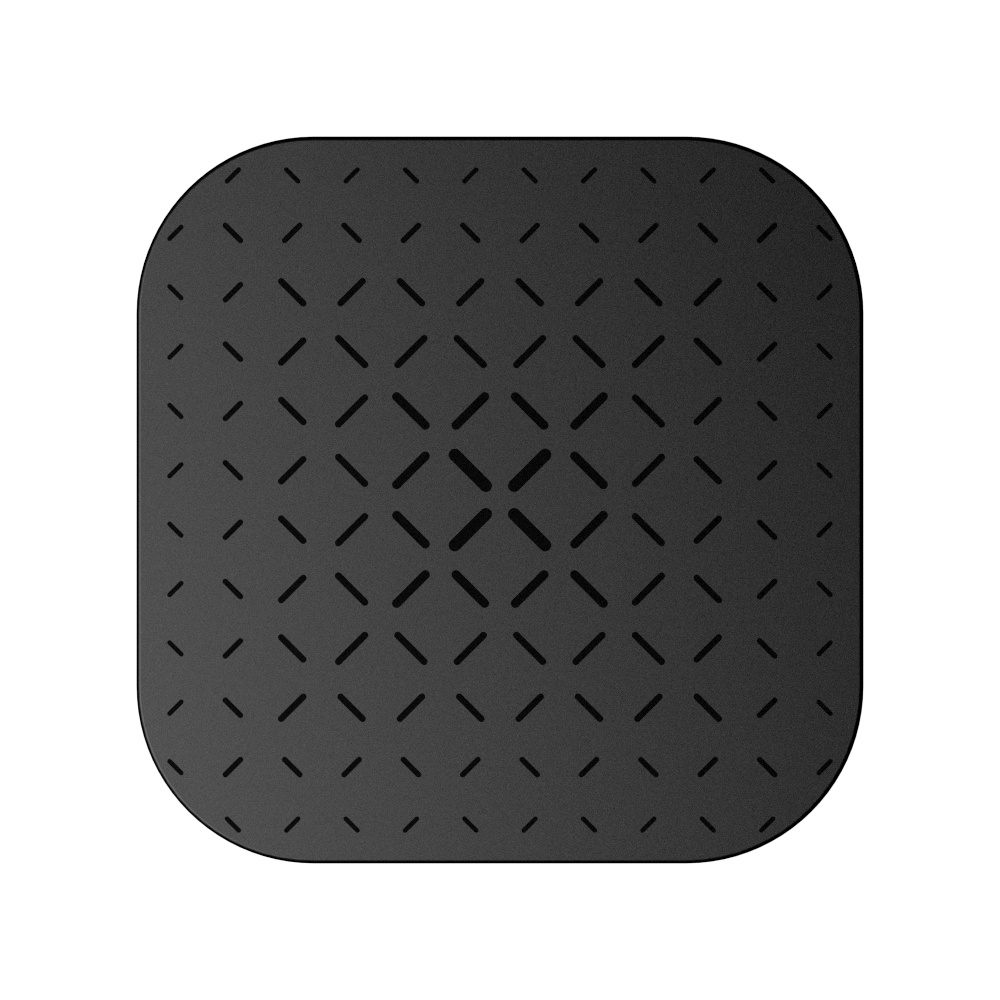

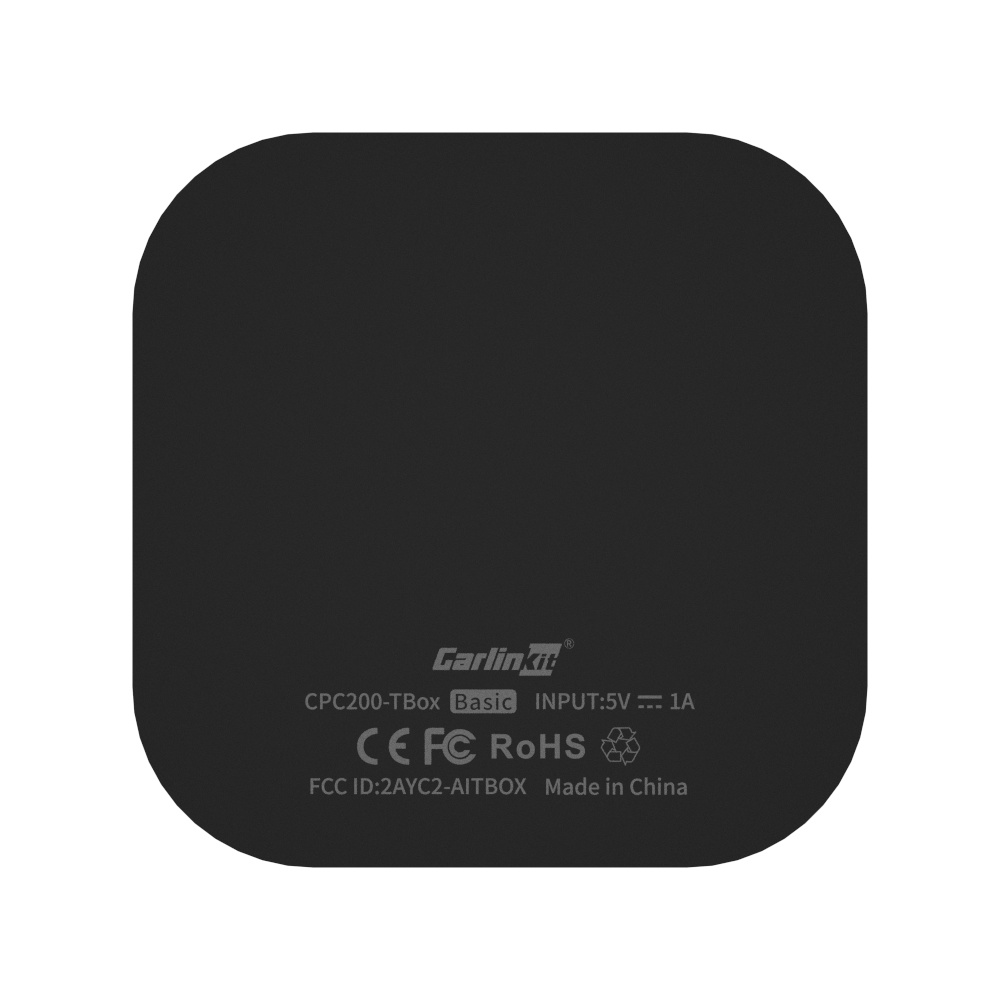

CarlinKit Smart Box
Brand
CarlinKit
Model
CPC200-ibox
Related Certificates
CE / FCC / ROSH / Telec / NCC / SRRC
Hardware
System
Android 11.0
CPU
Qualcomm QCM2290, quad-core 64-bit ARM Cortex™-A53 processor @ 2.0 GHz 11nm process
GPU
Adreno™ 702
ROM
2GB of RAM + 16GB of onboard memory
WIFI Frequency
802.11 a/b/g/n/ac, 2.4G+5G
Bluetooth Version
4.2 BLE+5.0 BLE
Power Input
5V±0.2V 1.0A
Power Consumption
5W
Material
ABS+PC
Resolution
Adaptive (maintains original protocol resolution)
Car OS System
Support the original car comes with wired CarPlay function Automotive Head Unit
Language
Multiple languages worldwide, e.g. Arabic, Chinese, English, French
Ports

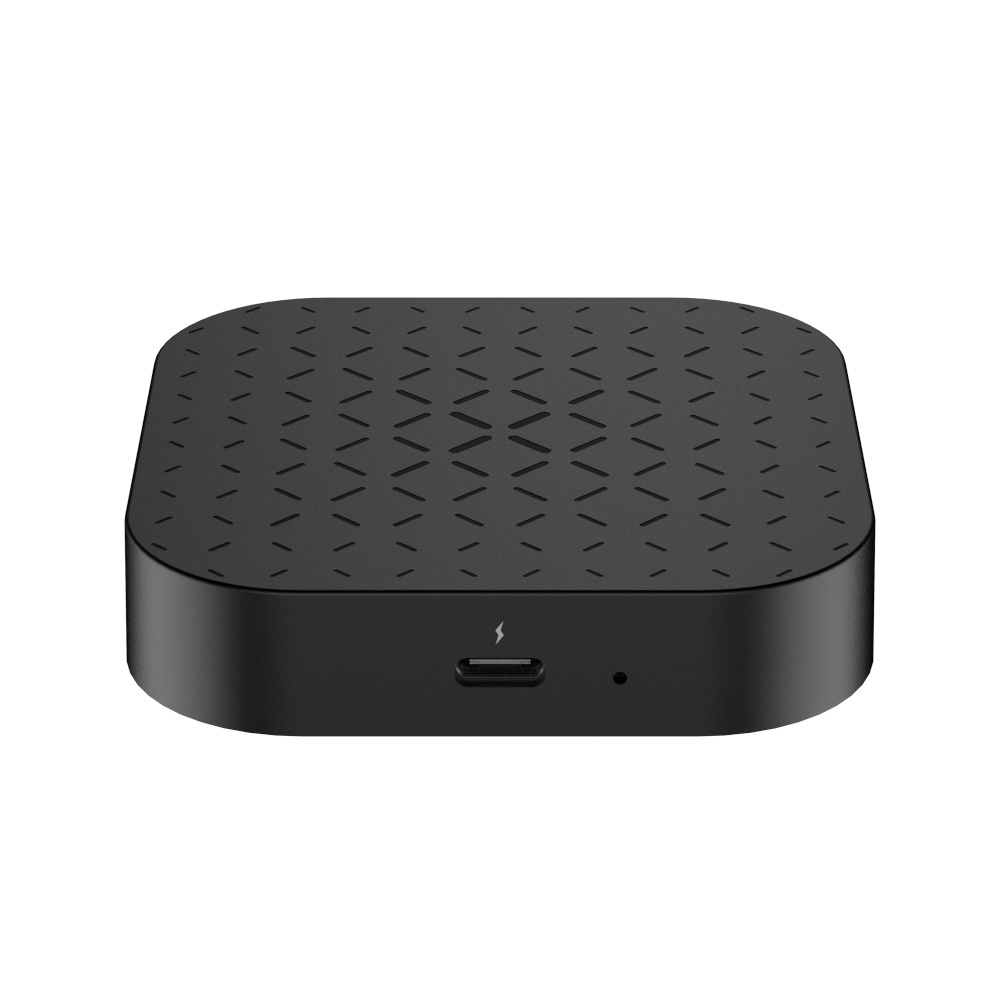

LED indicator, Type-C female port, TF card holder, SIM card holder
Wires
USB-A to USB-C*1 USB-C to USB-C*1 L=300mm
More
Product Size
78×78×16mm
Package Size
99×99×39mm
Net weight
0.066kg
Gross Weight
0.155kg
Place of Origin
CHINA
Images
Videos
Packing list
· Packaging box
· Instruction manual
· CPC200-ibox product
· Type-C - Type-C Data Cable*1
· Type-C - USB Data Cable*1
