CCPW
Dual screen connectivity
Plug the product into the USB port of the car, you can use the phone function on the car, and wake up the center control vitality

Performance Upgrade
Car-grade chip support, refuse to lag, strict car-grade standards Meet the high/low temperature environment in the car, to ensure the smooth and stable operation of CCPW

5.8GHz transmission rate
Faster and more stable,Compared with the 2.4GHz non-certified module used in ordinary products,5.8GHz transmission channels, high frequency, stronger anti-interference ability

Sensorless automatic connection
Sensorless automatic connection,After the first connection via Bluetooth and WiFi, the Automotive Head Unit will automatically connect when you start it.No need to connect manually with a data cable, so you can travel faster

Lane level navigation
Lane-level navigation mode on elevated expressways and highways (this function is provided by third-party apps, the specific effect is subject to actual use)

Intelligent voice control
Calling, navigating, playing music and other operations can be done by siri for you, freeing your hands and returning them to the steering wheel for safer driving


Enjoy the music
Not only APP music, audio radio, audio books, etc. can also be synchronized to the central control, driving is more fun

Mobile Screen Casting
Enjoy the wonderful big screen, very powerful screen mapping function, can synchronize the cell phone screen, all the APP on the phone can be cast screen



Tech Specs

Product

Product name

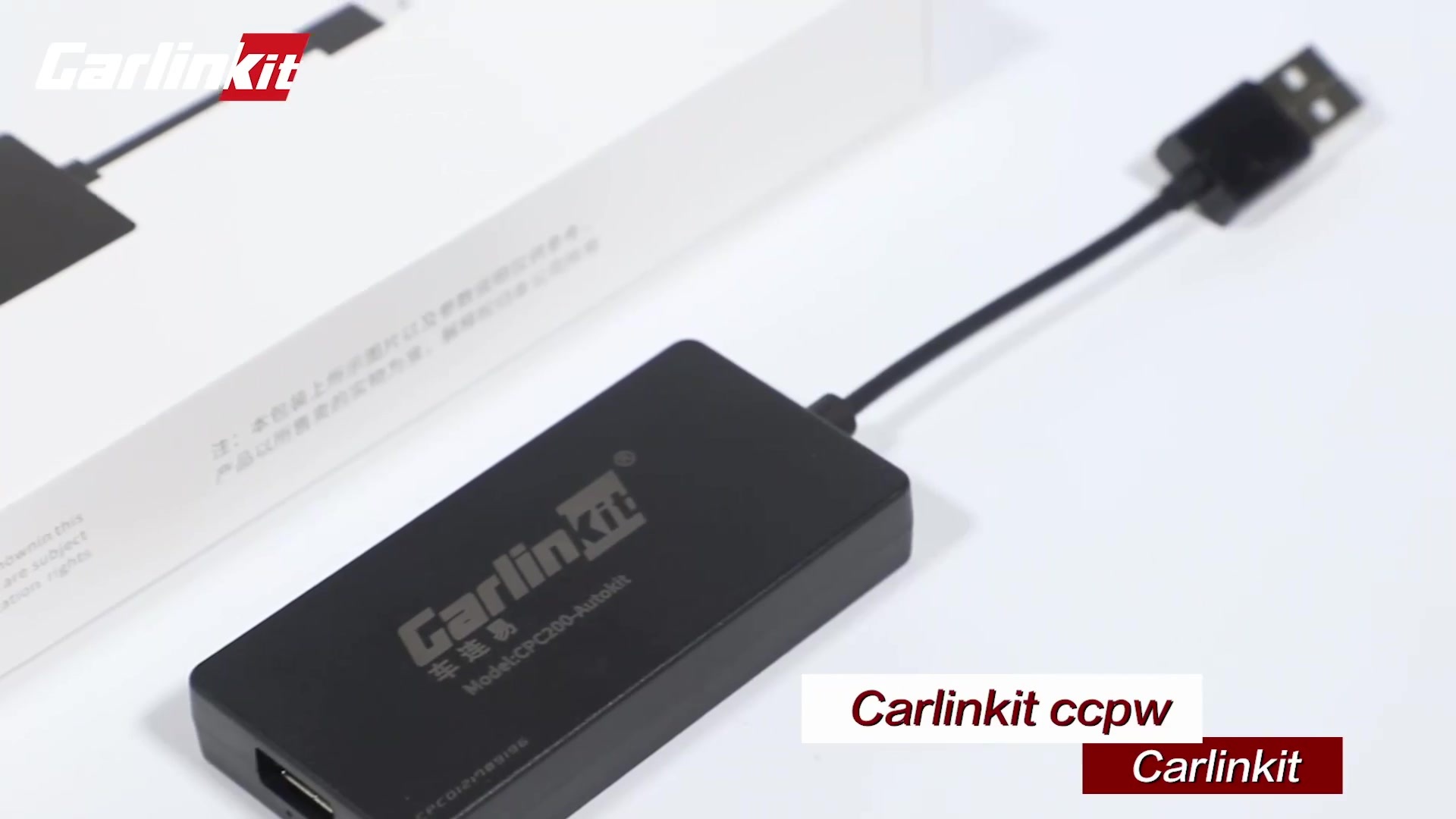

CarlinKit Smart Box

Brand Name
CarlinKit

Model
CPC200-AutoKit

Related Certificates
CE / FCC / PAHs / ROSH / KCC / NCC / Telec / BQB


Hardware

ROM
Atmel AT91SAM9260

WIFI Module
Realtek 8822BS/Broadcom 4354S

MFI
MFI 3959/MFI 3989

WIFI Frequency
5150-5250MHz，5725-5850MHz / 2412-2472MHz

Bluetooth version
4.1

Antenna Specifications
3 dbi Built-in FPC antenna

Power Input
5V±0.2V 1.0A

Power Output
DC 5V±0.2V 1.0A

Power Consumption
0.75W

Product Material
ABS

Resolution
Adaptive (maintains original protocol resolution)

Car OS System
Android 4.4 and above system versions

Phone OS System
CarPlay requires iPhone 6 and later, iOS 10 or above;

Language
Automatic switching or manual switching according to the language environment of the car

Ports
LED indicator, USB female port, USB male port


More

Product Size
185×42×13mm

Package Size
210×81×23mm

Net weight
0.04kg

Gross Weight
0.08kg

Place of Origin
CHINA


Images


Videos

AutoKit

Release time：2022-05-07 20:05

Applicable products：CCPM、Autokit pro、CCPA

Software Description：App for CarlinKit products

Support Systems：Android 4.2.2 and above

Version：2023.10.19

  • File size: 8.6MB

  • File size: 8.7MB

  • File size: 8.7MB

  • File size: 8.1MB

  • File size: 8.3MB

CCPW

  • File size: 3.3MB

  • File size: 3.2MB

Packing list

· Packaging box

· Instruction manual

· CPC200-AutoKit products
