TBox Ambient
Central control becomes Android system in seconds
The original wired CarPlay/Android Auto is upgraded to Android, while supporting CarPlay/Android Auto wireless connection. Three systems, a variety of ways to play, so that the car machine to say goodbye to monotony, mobile phones and the central control interface do not interfere with each other, independent operation!

Conditions of use
Factory wired CarPlay or Android Auto models can use this product; Wireless CarPlay: iPhone 6 and above, iOS 10 or above models; Wireless Android Auto: Android mobile phone system 11.0 or above

Quality Upgrade
8-core QCM6225-64-bit processor,Qualcomm Snapdragon 6225 mobile platform.Using 6nm technology, more powerful performance, running fast without pressure(Also available in Qualcomm 6125/660 versions of Tbox Ambient)

Mobile Cinema
Support a variety of video APP, a large number of film resources at your leisure to watch,Support downloading games to play online, so that your journey is no longer boring

More systems
Open a new intelligent experience,Built-in wireless CarPlay, wireless Android Auto,Enjoy more cell phone interconnection system

Multiple satellite navigation systems
China Beidou + US GPS + Russia Glonass,Triple positioning, online map for your navigation, avoiding congestion,Quick response to the road, travel smoothly,Let you travel without worry

Multi-colour ambient light
Customise your favourite colours to give off a dazzling light in the darkness, Supports switching the light on/off

4G Network Access
One card is convenient and quick, built-in 4G all-networking module, support traffic Internet/WiFi hotspot networking, online video, experience unlimited fun


Tech Specs

Product

Product name
CarlinKit Smart Box

Brand
CarlinKit

Model
CPC200-Tbox Ambient

Related Certificates
Rosh / FCC / CE / TELEC / NCC / SRRC


Hardware

System
Android 13

CPU
Qualcomm's QCM6225

GPU
Adreno™ 610

ROM
4GB LPDDR4 RAM+64GB UFS ROM / 6GB LPDDR4 RAM+128GB UFS ROM /8GB LPDDR4 RAM+128GB UFS ROM

Versions
CN(China)、EAU(Asia,Europe),NA (North America, Canada),JP(Japan)

WIFI Frequency
802.11 a/b/g/n/ac, 2.4G+5G

Bluetooth Version
4.2 BLE+5.0 BLE

Power Input
5V±0.2V 1.0A

Power Consumption
5W

Material
ABS+PC

Resolution
Adaptive (maintains original protocol resolution)

Phone OS System
Wireless CarPlay: iPhone 6 and above / iOS 10.0 and above; Wireless Android Auto: Android 11.0 and above

Car OS System
Car with factory wired CarPlay or wired Android Auto

Language
Multiple languages worldwide, e.g. Arabic, Chinese, English, French

Ports
LED indicator, Type-C female port, TF card holder, SIM card holder

Wires
USB-A to USB-C*1 USB-C to USB-C*1 L=300mm

Cellular network


More

Product Size
78.6×78.6×18.5mm

Package Size
99×99×39mm

Net weight
0.08kg

Gross Weight
0.175kg

Place of Origin
CHINA


Videos

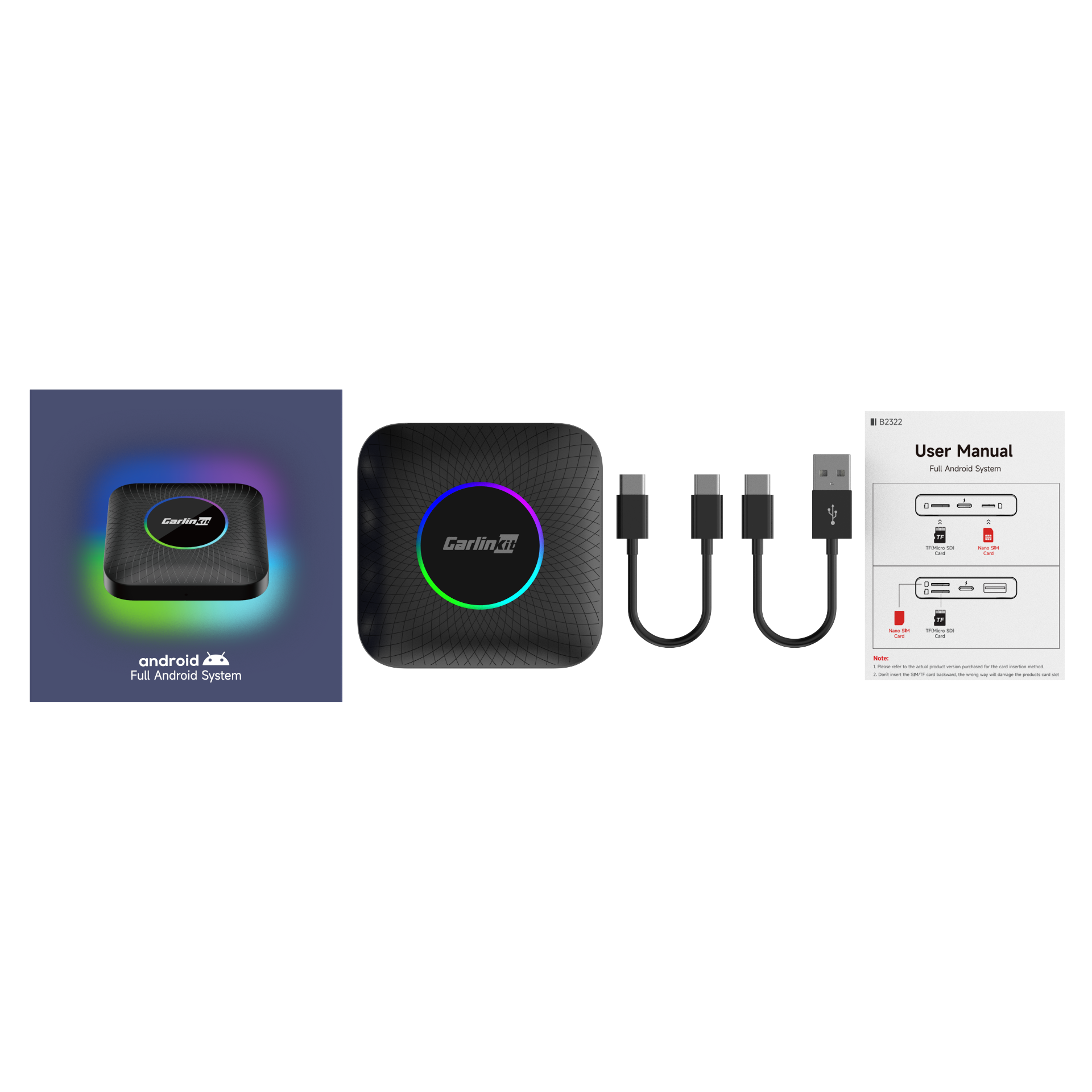

Packing list

· Packaging box

· Instruction manual

· CPC200-Tbox Ambient product

· Type-C - Type-C Data Cable*1

· Type-C - USB Data Cable*1
